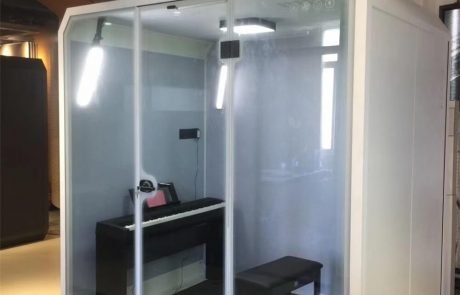

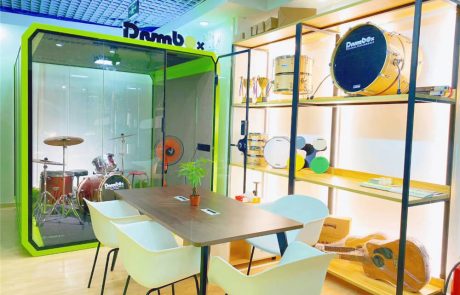

Portable Acoustic Silence Booth Movable Booth

• كشك الصمت الصوتي المحمول

مكان المنشأ: قوانغدونغ، الصين

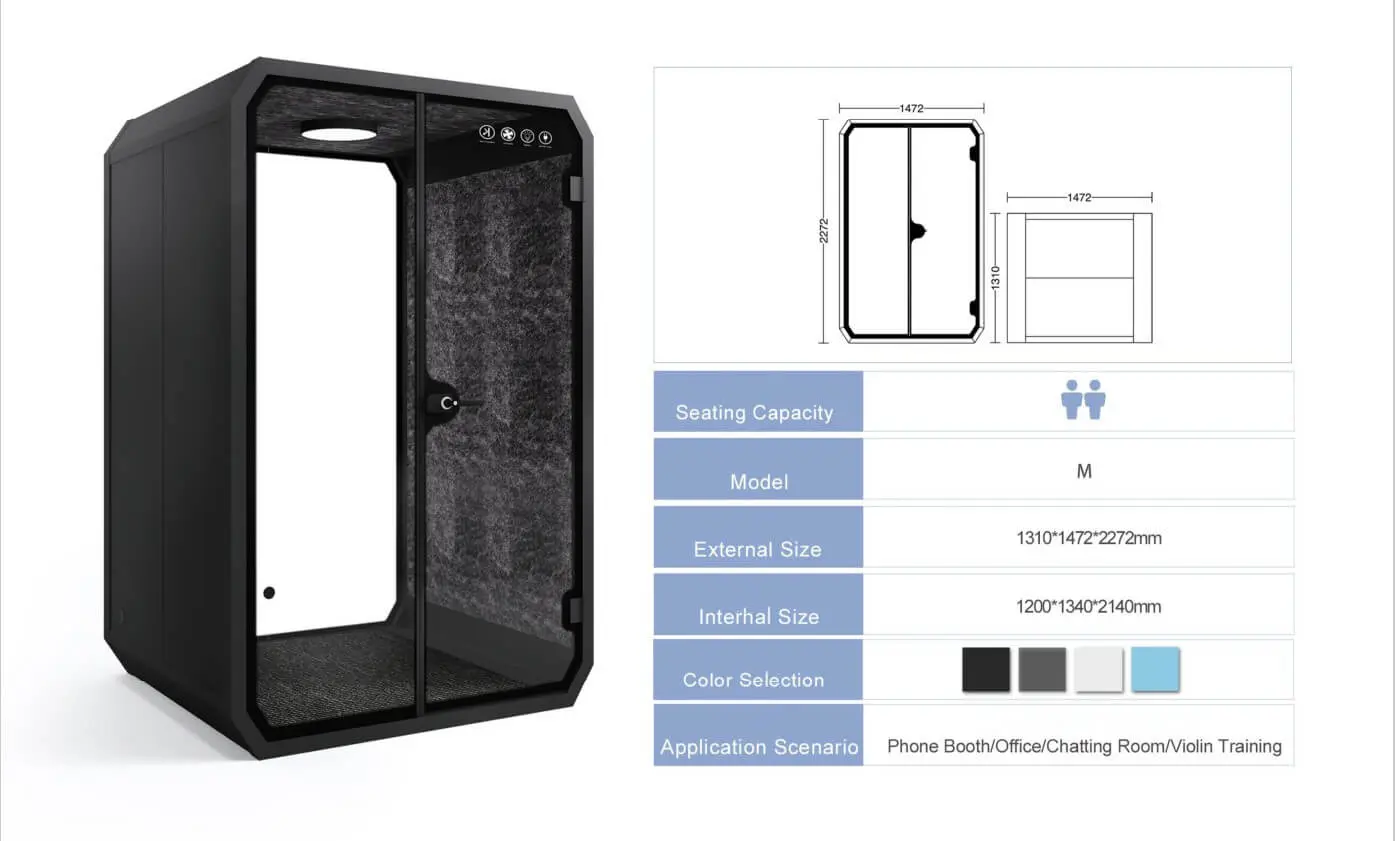

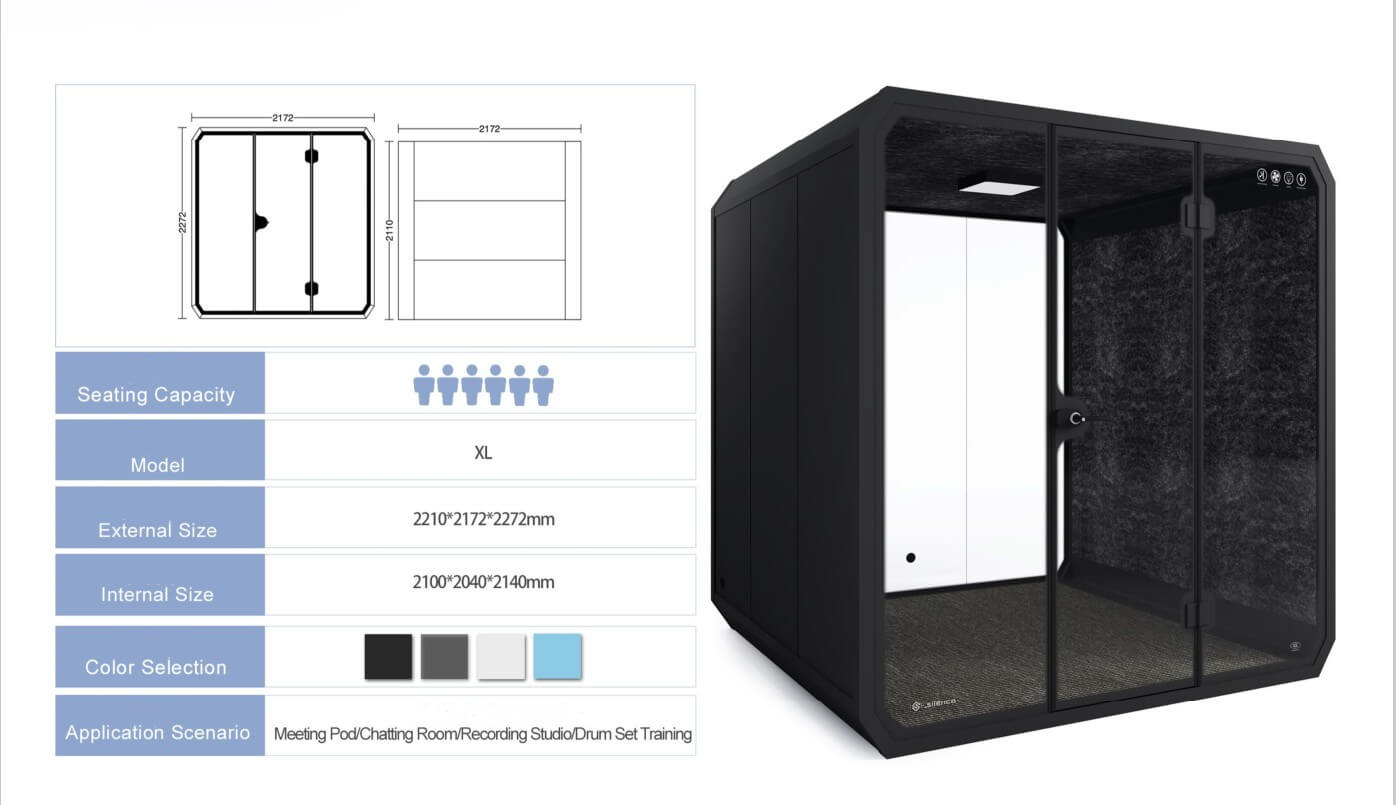

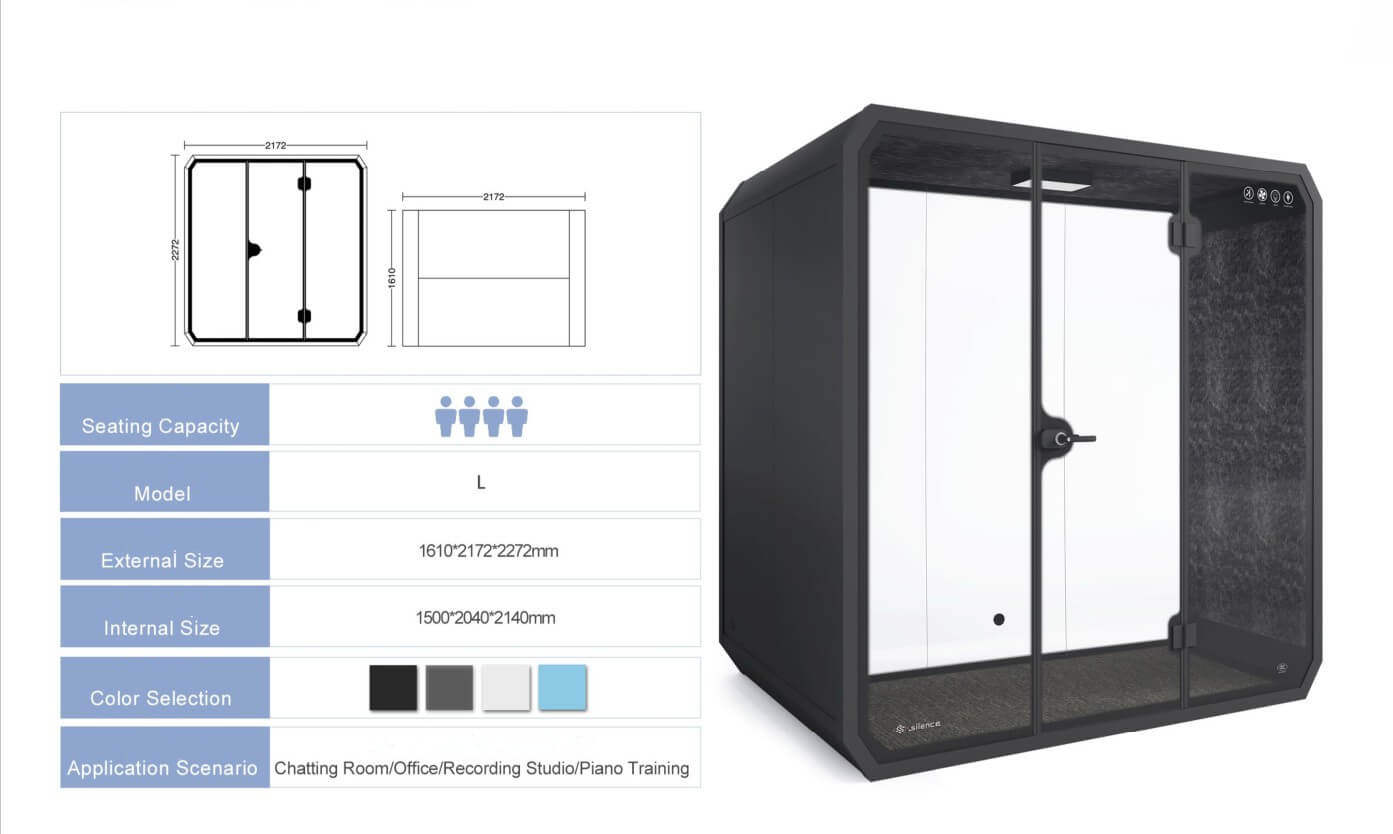

الحجم الخارجي: 2210 * 2172 * 2272 ملم

الحجم الداخلي: 2100 * 2040 * 2140 ملم

اللون: أزرق أبيض رمادي أسود

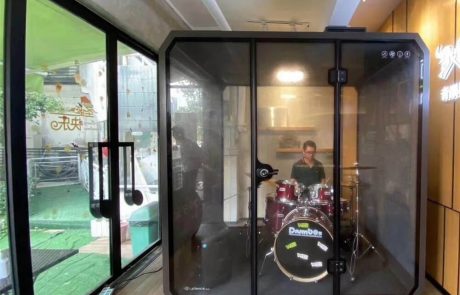

التطبيق: Phone Booth/Solo Office/Saxophone

الإضاءة System:4000K الضوء الطبيعي

System:100 إمدادات الطاقة الكهربائية - 240V/50-60Hz

قيمة تصميم التصنيف البيئي: Rw + Ctr 30db (+ 5db) و RT0.25s (+ 0.1 s)

الداخلية الصوتية: 60٪ مادة امتصاص الصوت

نظام العادم: ضوضاء منخفضة

وصف المنتج

Product Feature

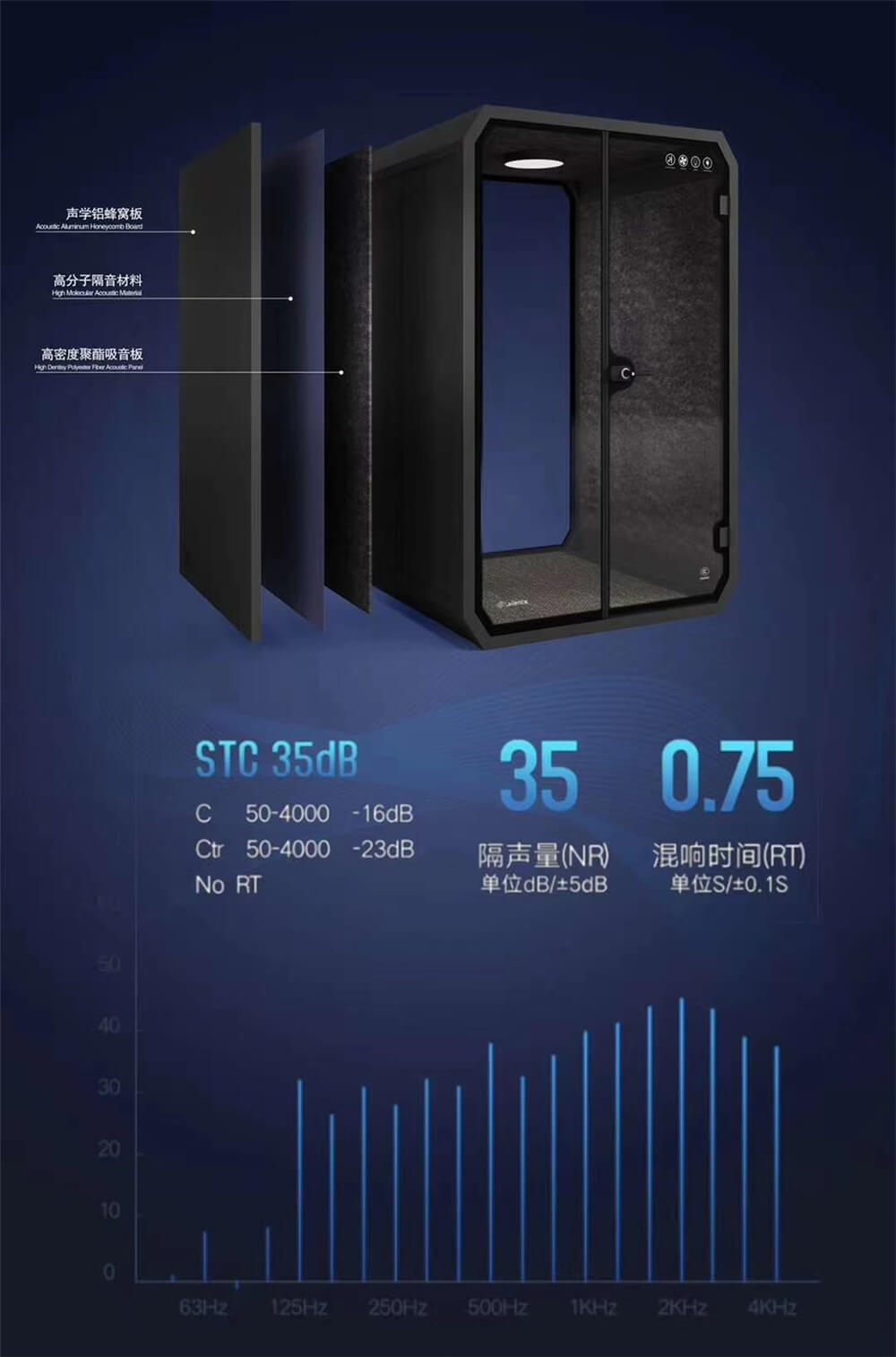

Sound Insulation

In our designing process, we fully utilize acoustic simulation software, while preserving soundproofing as to iterate and obtain optimal acoustic performance.

Our booth is consistent with the slandard of environmental rating design value:Rw+Ctr 30db(+5db) and RT0.25s(+0.1s).

Ventilation Fan

Low noise air ventilation system with maze-like internal layout to ensure necessary air circulation in three minutes, while preserving soundproofing attributes of the booth.

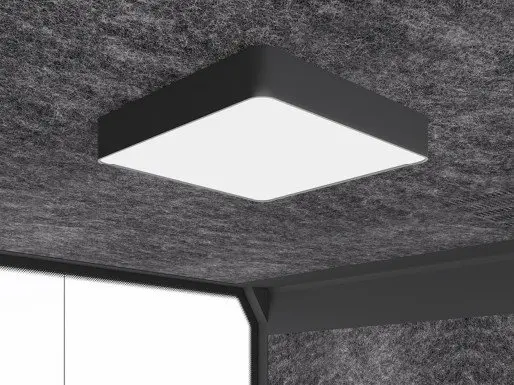

Lighting

Equipped with 4000k daylight color temperature LED lighting system 150LX, it would satisfy the needs of normal activities. In the event of additional power requirements, a backup power supply is readily installed inside the booth.

22V Power

Our booth is equipped with 12V-USB power supply and power rated for 100-240V/50-60HZ, complying with common equipment requirements.

Hook and Loop Fasteners

Magic tape band is used for the back side installation of acoustic materials. It is environmentally friendly and tasteless, comply with European ROHS standard.Stable and fast installation facilitates repeated used in the future.The material and application design of magic tape has successfully constructed a model which is easy to disasseble and assemble several times.

Sound Insulation Tempered Glass

With multiple laboratory tested results, conventional glass is not able to fulfill our needs to achieve our desired noise reduction performance, we had tested and chosen to use double-glazing glass.
